M12 male 0° / M12 female 0° A-cod.
PUR 4x0.34 bk UL/CSA+drag ch. 5m
| Art.No.: | 7000-40021-6340500 |
| Alternative product: | 7000-40021-6340600 |
| Weight: | 0.166 kg |
| Country of origin: | CZ |
CA
Available
EU
Available
Description

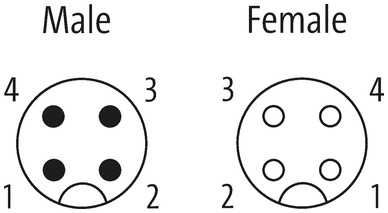

Male straight – female straight
M12 – M12, 4-pole
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Technical Data
| Cable length | 5 m |
|---|
Side 1
| Tightening torque head 1 | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family form head 1 | M12 |
| Thread | M12 x 1 |
| Inner diameter contour for corrugated hose head 1 | 10 mm |
| Coding head 1 | A |
| Material head 1 | PUR |
| Width across flats head 1 | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Side 2
| Tightening torque head 2 | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family form head 2 | M12 |
| Thread | M12 x 1 |
| Inner diameter contour for corrugated hose head 2 | 10 mm |
| Coding head 2 | A |
| Material head 2 | PUR |
| Width across flats head 2 | SW13 |
Electrical data | Supply
| Operating voltage AC (UL-listed) | 30 V |
|---|---|
| Operating voltage AC max. | 250 V |
| Operating voltage DC (UL-listed) | 30 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
Installation | Connection
| Mounting set | M12 x 1 |
|---|
Device protection | Electrical
| Rated surge voltage | 2,5 kV |
|---|---|
| Material group (IEC 60664-1) | I |
| Protection degree additional condition | inserted, screwed |
| Pollution Degree | 3 |
Mechanical data | Material data
| Coating locking | Nickeled |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
|---|
Environmental characteristics | Climatic
| Operating temperature min. (dynamic) | -25 °C |
|---|---|
| Min. operating temperature (static) | -25 °C |
| Operating temperature max. (dynamic) | 80 °C |
| Max. operating temperature (fixed) | 80 °C |
Conformities, approvals, certificates
| Product standard | DIN EN 61076-2-101 (M12) |
|---|
Cable data
Cable
| Cable identification | 634 |
|---|---|
| Cable Type | 3 (PUR) |
| Approval (cable) | cURus (AWM-Style 20549/10493); CE conform |
| Cable weight [g/m] | 36,3 g |
| Material wire | Cu wire, bare |
| Resistor (core) | max. 57 Ω/km (20 °C) |
| Single wire Ø (core) | 0.1 mm |
| Construction (core) | 42× 0.1 mm (multi-strand wire class 6) |
| Diameter (core) | 4× 0.34 mm² |
| AWG | similar to AWG 22 |
| Material wire isolation | PP |
| Material property wire insulation | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Shore hardness wire isolation | 70 ±5 D |
| Wire-Ø incl. isolation | 1.25 mm ±5% |
| Color/numbering of wires | br, bk, bl, wh |
| Stranding combination | 4 wires twisted |
| Shield | no |
| Material jacket | PUR |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Shore hardness jacket | 90 ±5 A |
| Outer-Ø (jacket) | 4.5 mm ±5% |
| Color jacket | black |
| chemical resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| thermal resistance | flame-retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2 |
| Nominal voltage | 300 V AC |
| Test voltage | 2500 V AC |
| Current load capacity | to DIN VDE 0298-4 |
| Temperature range (fixed) | -40...+80 °C, (+90 °C at max. 10 000 operating hours) |
| Temperature range (mobile) | -25...+80 °C, (+90 °C at max. 10 000 operating hours) |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| No. of bending cycles (C-track) | max. 10 Mio. (25 °C) |
| Travel speed (C-track) | max. 3 m/s |
| Acceleration (C-track) | max. 10 m/s² |
| Torsion stress | ±180°/m |
| No. of torsion cycles | max. 2 Mio. (25 °C) |
| Torsion speed | 35 cycles/min |
Commercial data
| ECLASS-6.0 | 27279218 |
|---|---|
| ECLASS-7.0 | 27279218 |
| ECLASS-8.0 | 27279218 |
| ECLASS-9.0 | 27060311 |
| ECLASS-10.1 | 27060311 |
| ECLASS-11.1 | 27060311 |
| ECLASS-12.0 | 27060311 |
| ETIM-5.0 | EC001855 |
| customs tariff number | 85444290 |
| GTIN | 4048879183352 |
| Packaging unit | 1 |
